T4SS-CAZy Environmental HGT: Cross-Phylum Transfer of Carbohydrate-Active Enzyme Cassettes

This is a scientifically ambitious and clearly motivated project investigating whether Type IV secretion systems physically co-localise with CAZy genes in environmental MAGs, and whether phylogenetic incongruence in GT2 gene trees provides evidence for cross-phylum HGT. The research question is specific and testable, the preliminary findings are quantitative and internally consistent, and the claim framing — explicitly associative and clearly distinguished from the PUL/TBDT literature — is exemplary. However, the project is not yet self-contained: its notebooks/ and data/ directories are both empty, with NB01–NB04 remaining in misc_exploratory/exploratory/ and all source data hard-coded to paths in that project. NB05 exists only as a standalone Python script (scripts/nb05_hgt_analysis.py) rather than the Jupyter notebook listed in the README, and none of the four adversarially-identified validation analyses (permutation test, housekeeping gene null, biome factorisation, Node_4915 BLAST) have been implemented. The project has strong scientific bones but requires significant work on self-containment, reproducibility scaffolding, and completion of the outstanding validation pipeline before it is ready for external review or manuscript submission.

Research question: Clearly and precisely stated. The dual focus on physical co-localisation (≤10 kb synteny) and phylogenetic incongruence (GT2 gene tree) provides two independent lines of evidence, which is methodologically sound.

Approach: Appropriate. The multi-marker T4SS definition (VirB4/6/8/9/10/11, VirD4, TraI/D, TrwB, TraG) is rigorous; the 70/30 discovery/validation split for enrichment patterns is good statistical practice and replication is mentioned in REPORT.md. The negative binomial GLM with cluster-robust standard errors by taxonomic class is a well-chosen model for overdispersed count data with non-independence.

Statistical methods: Fisher's exact + FDR for biome enrichment, Spearman for divergence–synteny correlation, Mann-Whitney for metal resistance comparison — all appropriate for the data types. The OR=10.4 for barley rhizosphere is striking and warrants confirmation via the pending biome factorisation (NB05.3), which correctly asks whether this exceeds independent T4SS and CAZy prevalence effects.

Data sources: Clearly tabulated in README (kescience_mgnify tables, kescience_fitnessbrowser, kescience_bacdive, NCBI RefSeq). The distinction between Spark-required and local-only queries is not documented.

Outstanding gap — four validation analyses not yet run: The adversarial review identified four specific methodological concerns, all still open at time of review:
1. Permutation test for the 10 kb synteny threshold — arbitrary threshold is unvalidated.
2. Housekeeping gene null baseline — without this, the 76/32 HGT detection rate cannot be shown to exceed background phylogenetic incongruence.
3. Biome enrichment factorisation (θ = OR_joint / [OR_T4SS × OR_CAZy]) — biome confounding not yet ruled out.
4. Node_4915 BLAST validation against NCBI nr — the 8-phyla, divergence-4.843 claim is the headline result and needs sequence-level verification.

These are not cosmetic; they are the primary claims the manuscript will need to defend.

scripts/nb05_hgt_analysis.py: Well-structured, readable Python with clear section separators. Statistical calls are correct (Spearman, Mann-Whitney with alternative='greater'). Figures are labelled and saved with sufficient DPI.

One style issue: from collections import Counter is imported at line 41, mid-script, rather than at the top with other imports. This is not a functional bug (Python 3 list comprehensions are scoped, so the p variable reuse in the comprehension on line 40 does not overwrite the Spearman p-value), but the mid-script import is poor practice and will raise linter warnings.

Hard-coded absolute paths: All three input files use absolute paths to misc_exploratory/exploratory/data/. Anyone other than the original author — or the author on a different machine — cannot run the script without editing these paths.

NB05 implements different analyses than planned: The README's NB05 section specifies four validation analyses (permutation test, housekeeping baseline, biome factorisation, Node_4915 BLAST). The script implements three different analyses (HGT event characterisation from CSV, GT2 neighbourhood function frequency, GT2 × metal resistance). The neighbourhood and metal resistance analyses are valuable and produce reproducible figures, but they do not address the adversarial validation agenda.

Source notebooks (NB01–NB04 in misc_exploratory): All three notebook files have saved outputs (T4SS_CAZy_Refined.ipynb: 21/22 cells with outputs; T4SS_CAzy_Tree_v3.ipynb: 4/5 cells; Alternative_HGT_Mechanisms_Plasticity_vs_Plasmids.ipynb: 6/14 cells). The Alternative_HGT notebook has notably fewer cells with saved outputs (43%), which means portions of NB04's analysis cannot be verified without re-running against Spark.

Pitfall awareness: No specific issues from docs/pitfalls.md are explicitly documented. The project uses kescience_mgnify (not kbase_ke_pangenome), so the pangenome-specific pitfalls (taxonomy join key, reserved order keyword) do not apply here. The general pitfall about string-typed numeric columns (kescience_fitnessbrowser coordinates and fitness values) would be relevant for any GLM cells in NB01 that use FitnessBrowser data — this is not verifiable without inspecting those notebooks in misc_exploratory.

Are conclusions supported? The preliminary conclusions reported in README and REPORT.md are quantitative and internally consistent. The OR values, q-values, GLM coefficients, and Spearman ρ are all cited with confidence intervals or p-values. The GT2 × metal resistance finding (11× enrichment, Mann-Whitney p=8.6e-27, n=376 vs 260,276) is striking and biologically interesting as a secondary result.

Count inconsistency: README states "76 HGT events detected in GT2 gene tree; 32 high-confidence cross-phylum events," but REPORT.md's NB05 section reports "n=77" for the Detected_HGT_Events.csv. This one-event discrepancy suggests either a version difference between the raw and normalised files, or an off-by-one in how one report counted. It should be reconciled and unified.

Limitations acknowledged: The claim framing section in README is unusually careful and commendable — explicitly associative, not causal; distinguishes mechanistically from PUL/TBDT literature; acknowledges experimental validation is required. This is the correct framing for an observational metagenomic study.

Incomplete analysis noted:
- NB05 validation analyses (all 4) pending.
- NB06 (synthesis/manuscript figures) not started — Fig. 1 (KEGG bubble chart) and Fig. 3 (GLM forest plot) are "TBD"; these are key figures for a manuscript.
- Only 2 of the 4 planned manuscript figures exist (Fig. 2, Fig. 4).

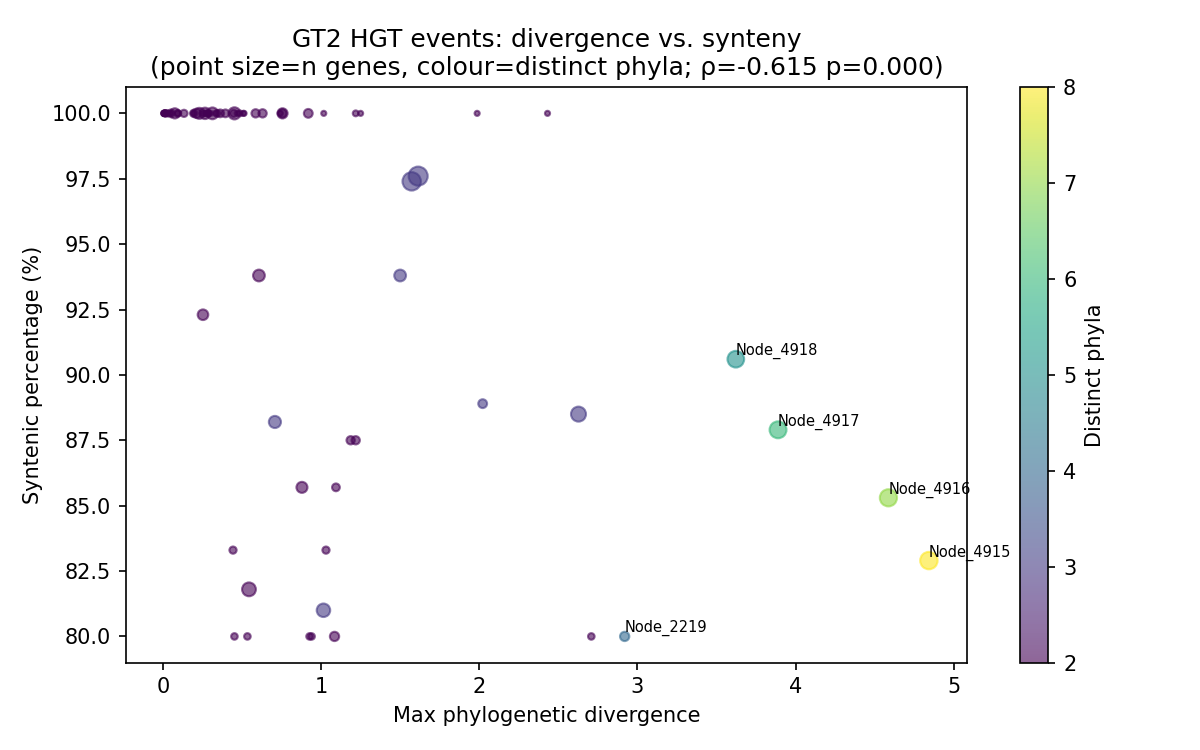

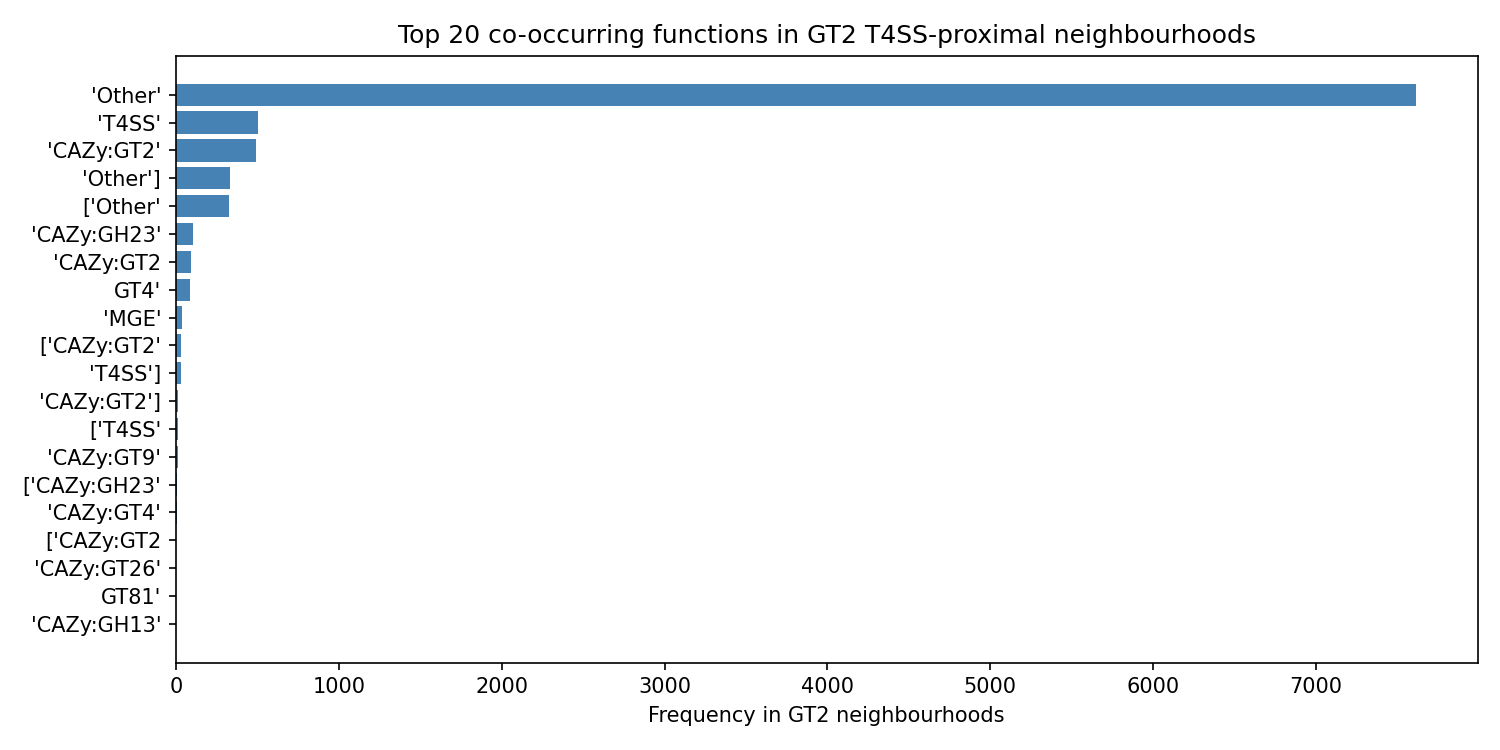

Figures: The two generated figures (fig_nb05_hgt_scatter.png, fig_nb05_neighbourhood_functions.png) exist in figures/ and are the output of the NB05 script. They cover the supplementary NB05 analyses. The primary manuscript figures (KEGG bubble chart, GLM forest plot) have not been generated.

1. [Critical] Make the project self-contained: Copy or symlink NB01–NB04 notebooks from misc_exploratory/exploratory/ into notebooks/ with standardised names (01_t4ss_identification.ipynb, 02_synteny_biome_enrichment.ipynb, 03_gt2_gene_tree.ipynb, 04_mobilome_scan.ipynb). A project whose core analysis lives in a different project directory is not reproducible.

2. [Critical] Implement the four NB05 validation analyses: The permutation test, housekeeping gene null, biome factorisation, and Node_4915 BLAST were identified by adversarial review as necessary before submission. These should be in a proper notebooks/05_validation_analyses.ipynb, not deferred further.

3. [Critical] Stage intermediate data: Populate data/ with the key intermediate files needed for NB05 and NB06 (at minimum: Detected_HGT_Events.csv, GT2_neighborhood_signatures.csv, Normalized_Detected_HGT_Events.csv, tree_metadata.csv). Replace hard-coded misc_exploratory paths in scripts/nb05_hgt_analysis.py with relative paths to the project's own data/ directory.

4. [High] Add a Reproduction section to README: Document which notebooks require JupyterHub Spark (NB01–NB04, NB05 permutation test), which can run locally from cached data (NB05 descriptives, NB06), and approximate expected runtimes. This is a standard BERDL project requirement.

5. [High] Add requirements.txt: List all Python package dependencies (pandas, numpy, scipy, matplotlib, and any Spark/BERDL utilities used in NB01–NB04). This is needed for reproducibility.

6. [Medium] Convert scripts/nb05_hgt_analysis.py to a Jupyter notebook: The script implements real analysis and generates published figures, but it has no cell-level outputs or documentation. Converting to .ipynb will allow narrative documentation alongside code and preserve outputs between runs.

7. [Medium] Reconcile the 76 vs. 77 HGT event count: README says 76, REPORT.md NB05 section says 77. Identify whether this is a normalisation filter difference (raw vs. cross-phylum subset), a file version issue, or an off-by-one, and use a single consistent number throughout all documents.

8. [Medium] Start NB06 synthesis figures: Fig. 1 (KEGG bubble chart) and Fig. 3 (GLM forest plot) are central manuscript figures marked TBD. These should be implemented before seeking external collaboration or submitting.

9. [Low] Fix the mid-script import: Move from collections import Counter to the import block at the top of scripts/nb05_hgt_analysis.py (line 41 → top of file).

10. [Low] Update the NB05 analysis plan in README: The four validation analyses in the README's NB05 section do not match what nb05_hgt_analysis.py actually implements. Either update the plan to reflect what was done, or clearly distinguish between "supplementary characterisation" (what the script does) and "validation" (the four adversarial items, still pending).
